T2 Copper Busbar with Tin Plated Surface for High Current Rating 630A 1000A 2000A and 98% IACS Conductivity

Name: T2 Copper Busbar with Tin Plated Surface for High Current Rating 630A 1000A 2000A and 98 IACS Conductivity
Brand: SYLAITH
Price: 8.5 USD

Supply Ability : 50000 Kilograms per Month

Length : Custom up to 6000mm

Tensile Strength : 220-250 MPa

Width Range : 10mm - 200mm

Price : USD 8.5-12.5 / Kilogram

Surface Treatment : Tin Plated / Electroplated

Model Number : CB-TP-2000A

Standard : ASTM B187, IEC 61439, GB/T 5585

Shape : Flat / Custom Bent Available

Delivery Time : 5 working days for stock, 15-20 days for production

Material : T2 Copper (C11000 ETP)

Conductivity : 98% IACS Minimum

Operating Temperature : -30°C to +105°C

Current Rating : 630A / 1000A / 2000A

Place of Origin : Jiangsu, China

Certification : ISO 9001:2015, IEC 61439, RoHS

Brand Name : SYLAITH

Thickness Range : 2mm - 20mm

MOQ : 100 Kilograms

Payment Terms : T/T,L/C,PayPal,Western Union

Elongation : 15-25%

Packaging Details : Export-grade wooden case with moisture-proof VCI paper wrapping, palletized for sea freight

Contact Now

T2 Copper Busbar Tin Plated Surface 630A 1000A 2000A High Current Rating for Switchgear Panel Board Distribution

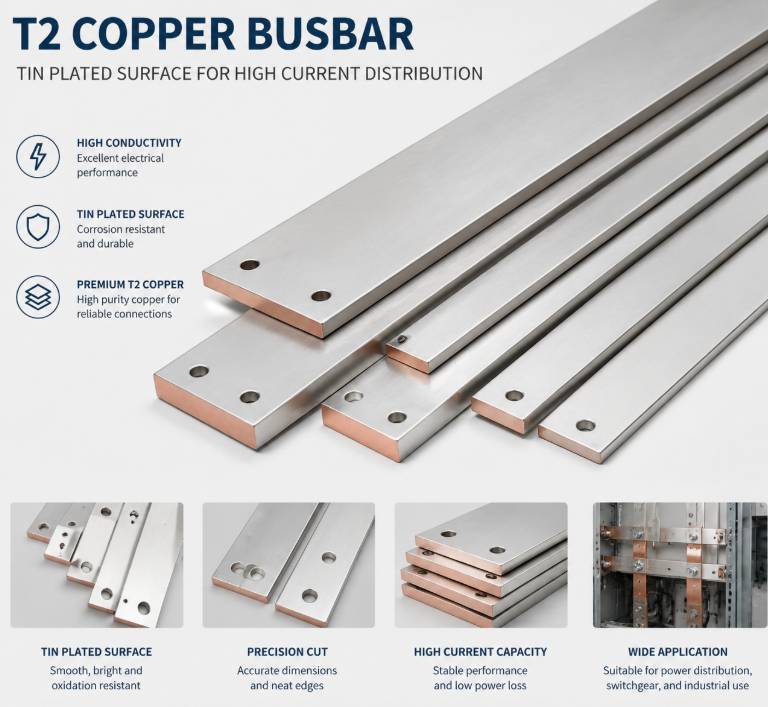

T2 Copper Busbar - Tin Plated Surface for High Current Distribution

T2 Copper Busbar with Tin Plated Surface for High Current Rating 630A 1000A 2000A and 98% IACS Conductivity

The WNRLN T2 Copper Busbar is engineered for high-current power distribution applications, featuring an electroplated tin surface for superior oxidation and corrosion resistance. Manufactured from C11000 ETP (Electrolytic Tough Pitch) copper with 98% IACS minimum conductivity, this busbar ensures minimal power loss and reliable performance in switchgear, panel boards, and industrial distribution systems.

Technical Specifications

Material Grade

T2 Copper (C11000 ETP)

Surface Treatment

Tin Plated (Electroplated)

Current Rating

630A / 1000A / 2000A

Conductivity

98% IACS Minimum

Width Range

10mm to 200mm

Thickness Range

2mm to 20mm

Length Options

Standard 1m/2m/3m/4m/5m/6m, Custom Available

Standards

ASTM B187, IEC 61439, GB/T 5585

Advantages of Tin Plating

Tin plating provides an effective barrier against oxidation and environmental corrosion, maintaining low contact resistance at connection points. Compared to bare copper, tin-plated busbars offer extended service life in humid or industrial environments, reducing maintenance frequency and improving long-term system reliability.

Applications

Low Voltage Switchgear and Switchboards
Power Distribution Panels and MCC
Substation Busbar Systems
Industrial Control Cabinets
Data Center Power Distribution
Solar Inverter DC Busbars
UPS System Busbars

Customization Options

We provide bespoke dimensions, bending, punching, drilling, and insulation sleeving. Send your drawings for a custom quotation. Standard lengths from 1m to 6m; special lengths up to 8m available on request. All products undergo 100% dimensional inspection and conductivity testing before shipment.

Packaging & Shipping

Products are wrapped in VCI anti-rust paper, packed in fumigation-free export-grade wooden cases, and secured on pallets for container shipping. Custom labeling and branding available for OEM orders.
